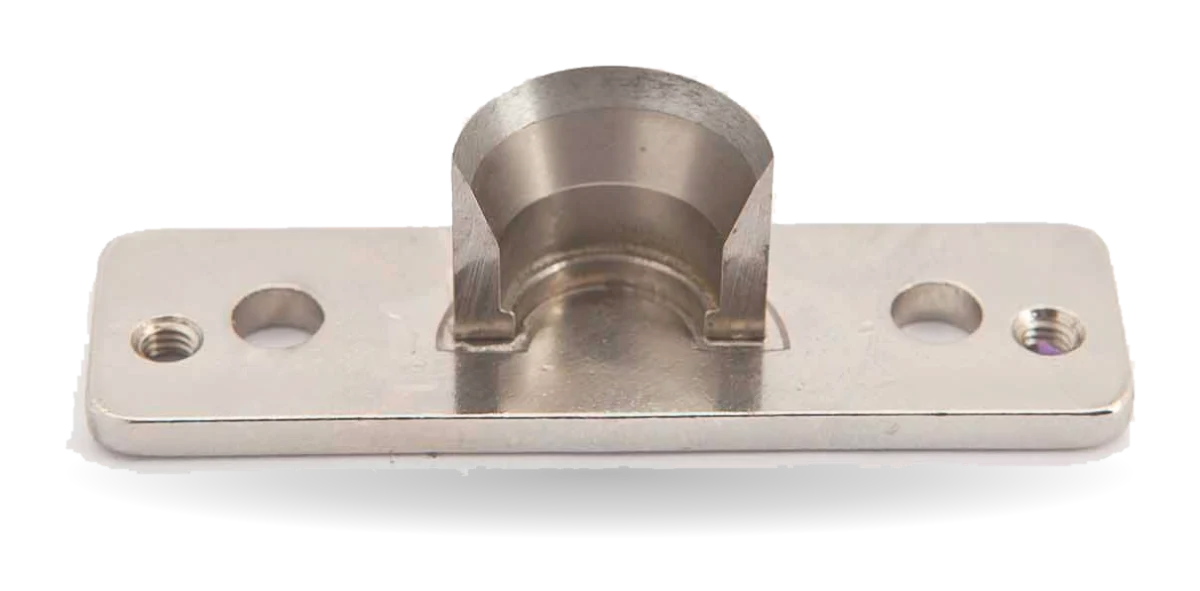

Half-round Die 21 mm on its two-screw mounting plate
360° view coming soon
Cutting Dies & Parts

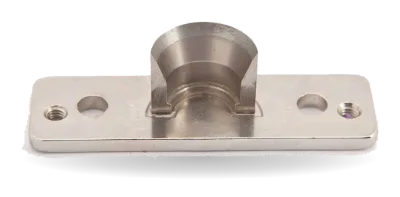

Half-round Die 21 mm

Model 1200-D21 · 21 mm half-round Fits Desktop Corner Cutter 1200

A 21 mm half-round notch on the edge of a sheet. Thumb cuts for boxes and folders, index tabs, hanging calendars. Pair it with the ruler kit for repeat cuts.

  • 21 mm half-round notch
  • Mounts on the 1200 two-screw plate, same footprint as every die
  • Stainless steel, cuts 100 sheets of 80 gsm paper per stroke on the 1200
  • Use with 1200-RULER for repeat positioning
Request a Quote See the 1200
Specifications

Model 1200-D21

Model1200-D21
ProfileHalf-round notch, 21 mm diameter
FitsDesktop Corner Cutter 1200
MountTwo-screw plate
Cutting capacity100 sheets of 80 gsm PPC paper · stack height 10 mm
MaterialStainless steel, grey
Dimensions70 × 20 × 20 mm
Net weight50 g
OriginMade in Taiwan
Downloads

Drawing & parts list

1200-D21 drawing (PDF)on request
Dies & parts list (PDF)on request

Need a radius we do not list? Custom die profiles are available for OEM orders.

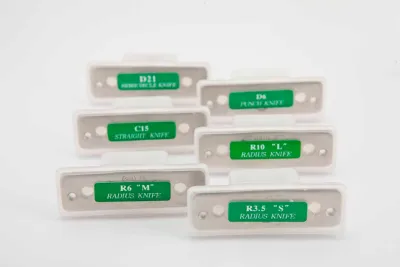

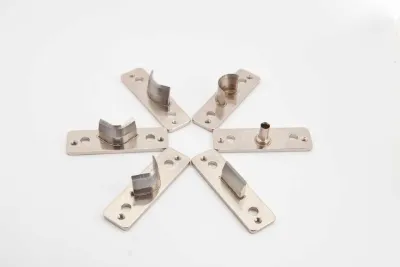

Also for the 1200

Other dies and parts

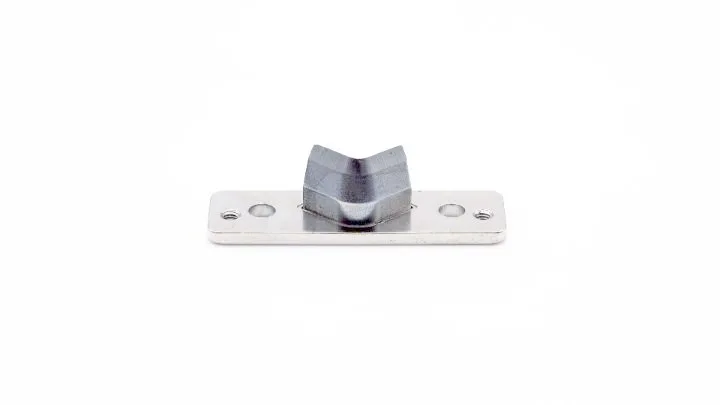

Corner Radius Die R3.5
1200-K3.5

Corner Radius Die R3.5

Tight 3.5 mm corner · fits 1200

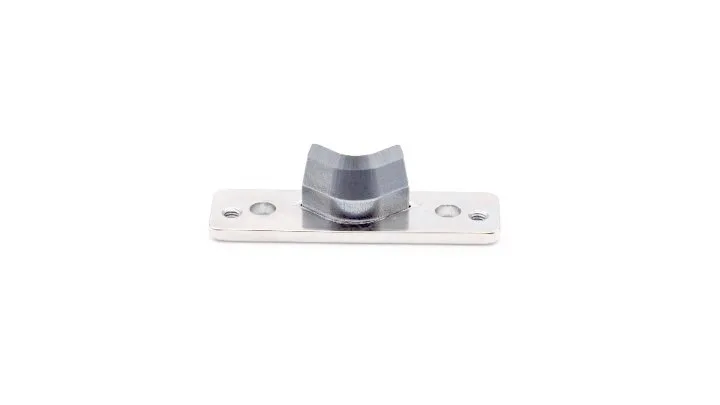

Corner Radius Die R6
1200-K6

Corner Radius Die R6

Standard 6 mm corner · fits 1200

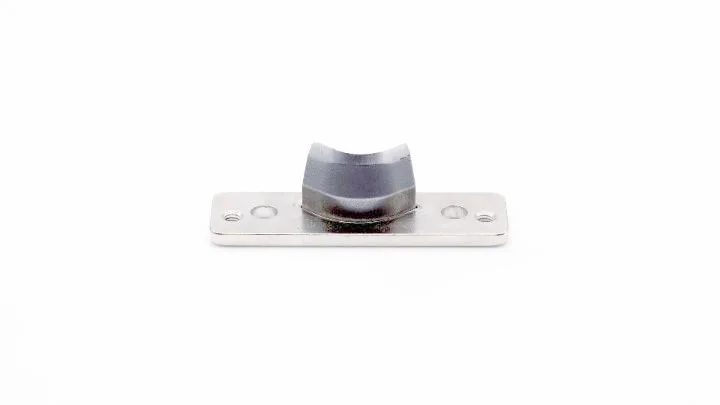

Corner Radius Die R10
1200-K10

Corner Radius Die R10

Soft 10 mm corner · fits 1200

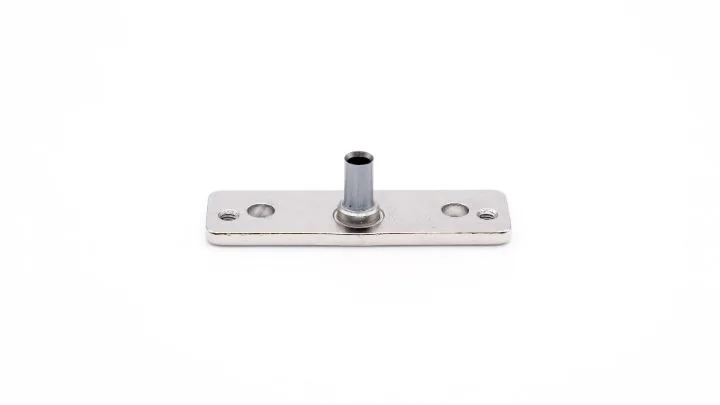

Round Hole Punch Die Ø6
1200-D6

Round Hole Punch Die Ø6

6 mm hole for tags and hangers · fits 1200

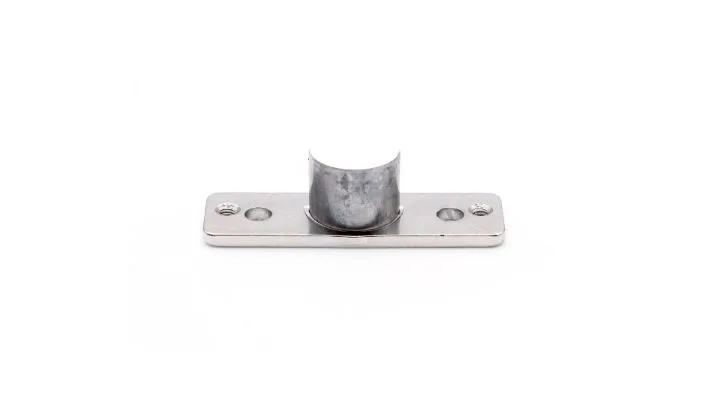

Half-round Die 21 mm
1200-D21

Half-round Die 21 mm

Half-circle notch, thumb cut · fits 1200

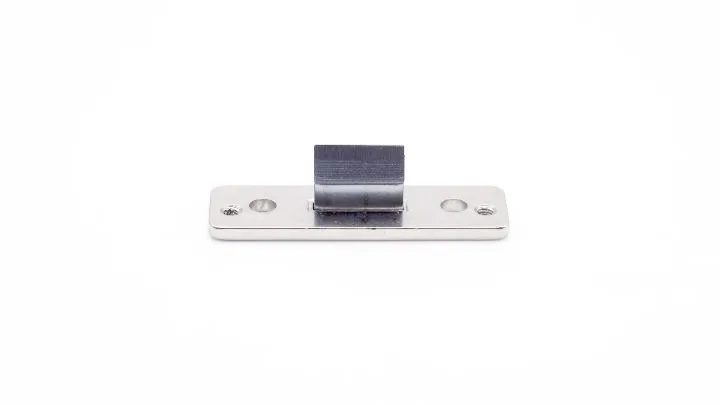

Straight Blade Die 15 mm
1200-C15

Straight Blade Die 15 mm

Straight slit for slots and tabs · fits 1200

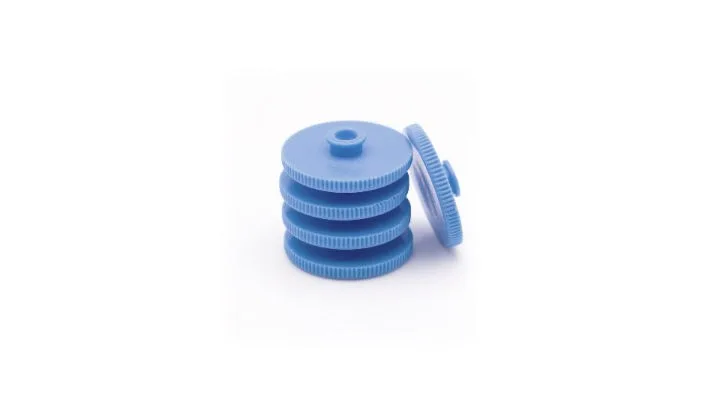

Cutting Pad
1200-PAD

Cutting Pad

Plastic cutting pads, 5 per bag, Ø25 mm · fits 1200

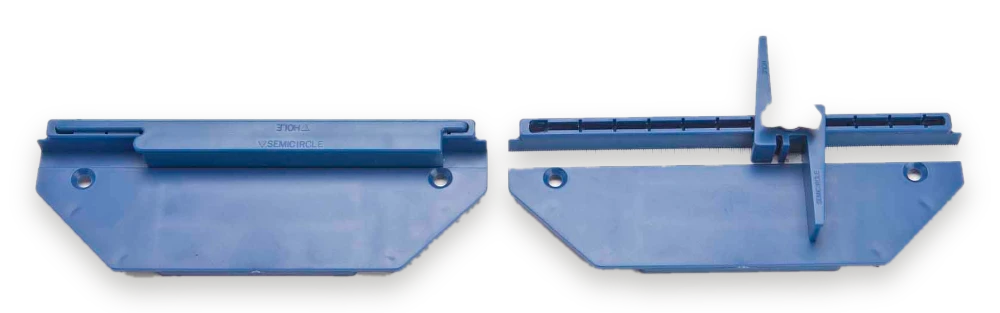

Ruler Kit
