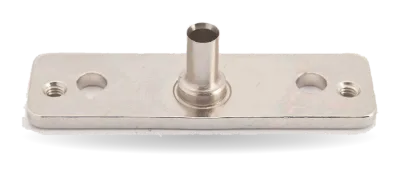

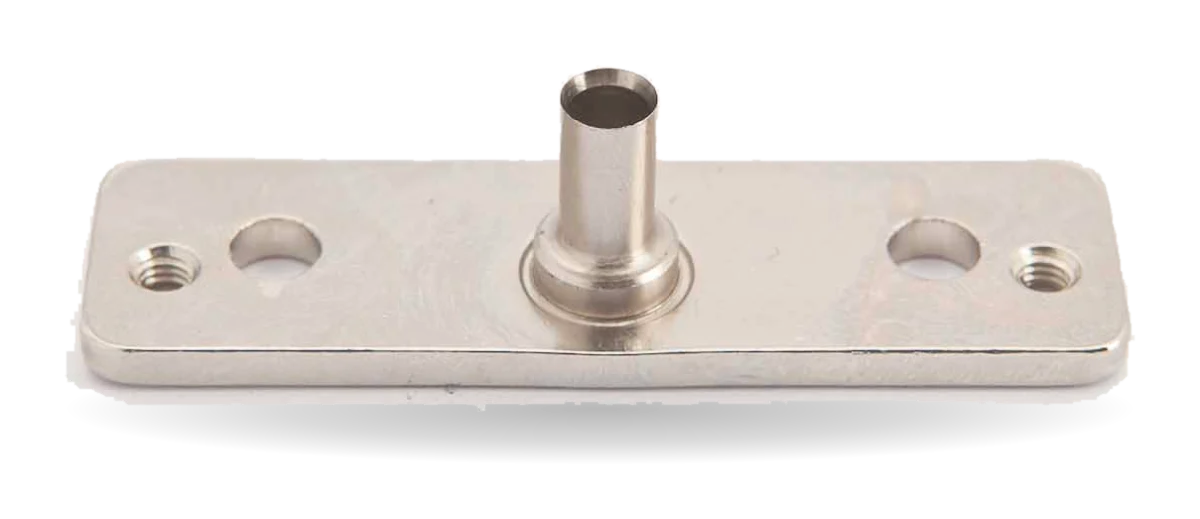

Round Hole Punch Die Ø6 on its two-screw mounting plate
Open 360° in new tab ↗
Cutting Dies & Parts

Round Hole Punch Die Ø6

Model 1200-D6 · 6 mm hole Fits Desktop Corner Cutter 1200

A clean 6 mm hole through a stack. For hang tags, lanyard cards, calendars and swatch books. Pair it with the ruler kit and every hole lands in the same place.

  • Ø6 mm round hole
  • Mounts on the 1200 two-screw plate, same footprint as every die
  • Stainless steel, punches 100 sheets of 80 gsm paper per stroke on the 1200
  • Use with 1200-RULER for repeat positioning
Request a Quote See the 1200
Specifications

Model 1200-D6

Model1200-D6
ProfileRound hole, Ø6 mm
FitsDesktop Corner Cutter 1200
MountTwo-screw plate
Cutting capacity100 sheets of 80 gsm PPC paper · stack height 10 mm
MaterialStainless steel, grey
Dimensions70 × 20 × 20 mm
Net weight50 g
OriginMade in Taiwan
Downloads

Drawing & parts list

1200-D6 drawing (PDF)on request
Dies & parts list (PDF)on request

Need a radius we do not list? Custom die profiles are available for OEM orders.
