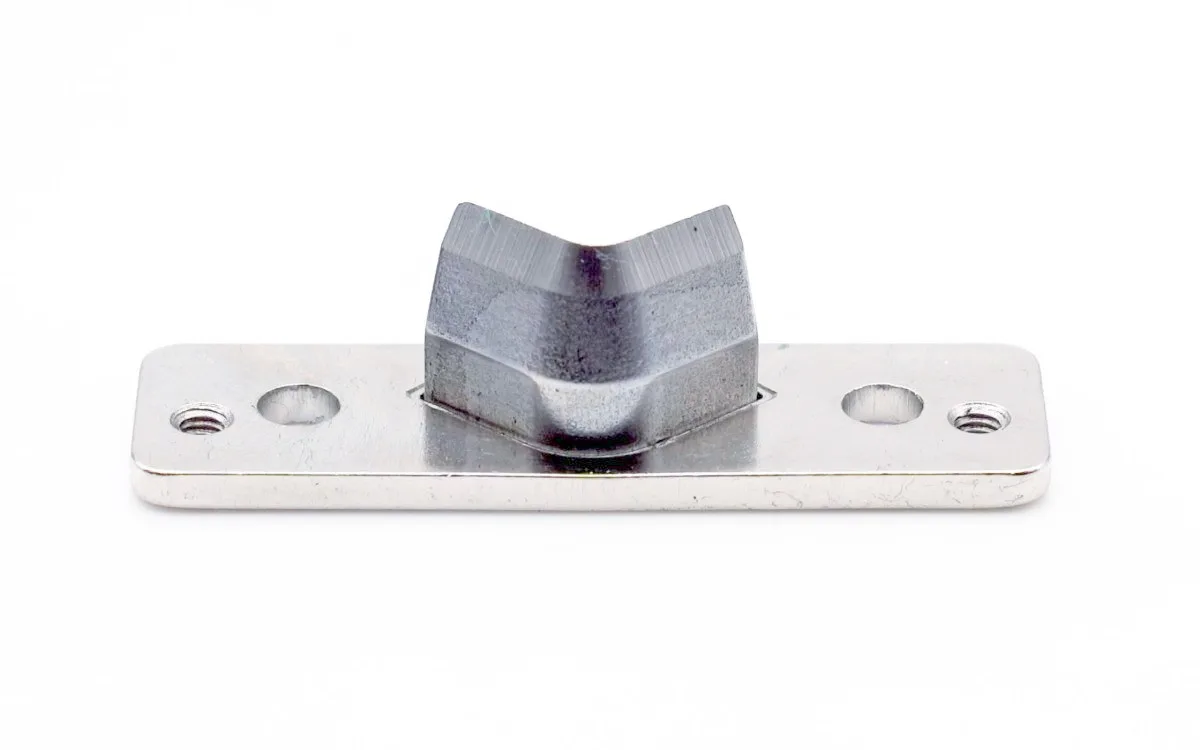

Corner Radius Die R3.5 on its two-screw mounting plate
Open 360° in new tab ↗
Cutting Dies & Parts

Corner Radius Die R3.5

Model 1200-K3.5 · 3.5 mm radius Fits Desktop Corner Cutter 1200

The tight corner. A 3.5 mm radius takes the sharp point off a business card or ID card without changing its look, the finish corporate printers ask for.

Radius
  • 3.5 mm corner radius
  • Mounts on the 1200 two-screw plate, same footprint as every die
  • Stainless steel, cuts 100 sheets of 80 gsm paper per stroke on the 1200
  • Sold as a die on its plate, ready to fit
Request a Quote See the 1200
Specifications

Model 1200-K3.5

Model1200-K3.5
ProfileRound corner, radius 3.5 mm
FitsDesktop Corner Cutter 1200
MountTwo-screw plate
Cutting capacity100 sheets of 80 gsm PPC paper · stack height 10 mm
MaterialStainless steel, grey
Dimensions70 × 20 × 20 mm
Net weight50 g
OriginMade in Taiwan
Downloads

Drawing & parts list

1200-K3.5 drawing (PDF)on request
Dies & parts list (PDF)on request

Need a radius we do not list? Custom die profiles are available for OEM orders.
